Cable Pontoons are extremely versatile with rather simple installation process and very cost effective to maximise your waterfront property.
Cable Pontoons can be adapted to many locations and in many cases where piles cannot be installed at the pontoon.
An affordable luxury with a variety of great accessories so that you and your family can enjoy more of your waterfront lifestyle.

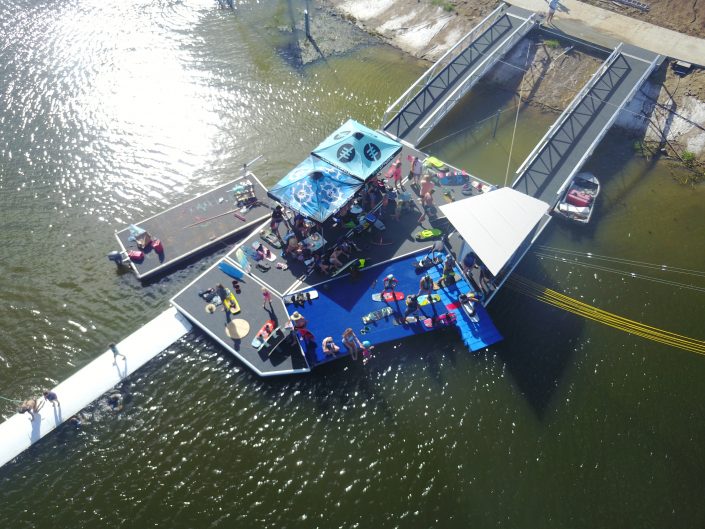

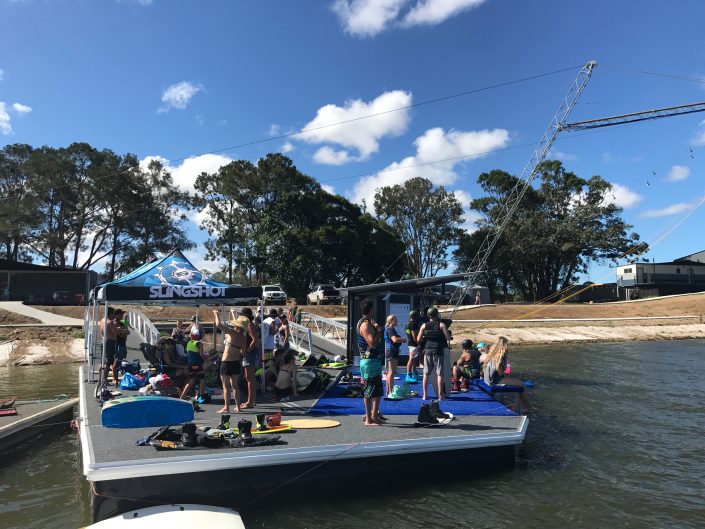

These can be used for a variety of uses including commercial structures. Powering the all new Gold Coast Wake Park.
Constructed with the highest grade materials starting from the aluminium deck right through a truss like system for the deck.
Aqua Pontoons determine the most suitable cable system for your location and provide you with a no obligation free quote.
Your no obligation free quote includes a free onsite inspection to assess the most cost effective solution for your customised requirements. Cable Pontoons are constructed with the highest grade materials starting from the aluminium deck right through to the flotation system. Using a truss like system for the deck the light weight series is extremely strong, layered over the truss is aluminium sheeting to which the carpet is then fixed onto. Using only quality materials and no timber the light weight series has an extremely long life expectancy.
The pontoon can be either made from concrete or our light weight aluminium system. The concrete type have a 125mm thick concrete deck on the top, this is used to make a strong heavy structure. The light weight series is aluminium sheeting and a truss system to gain its rigidity and spread loads, both systems are then topped off with first grade marine carpet.

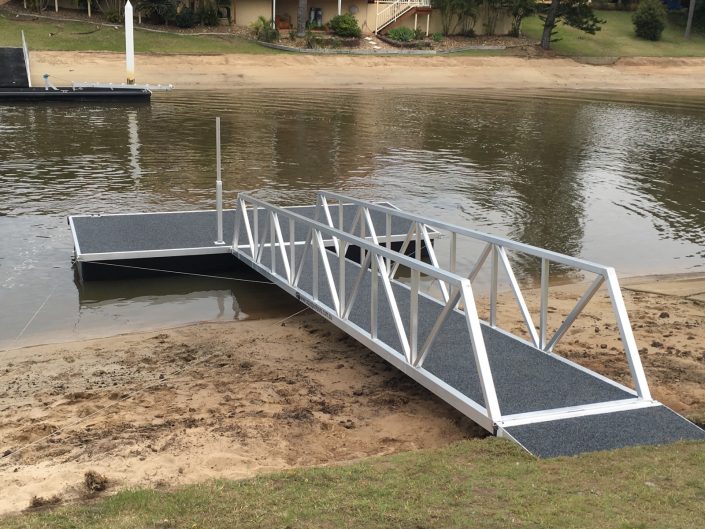

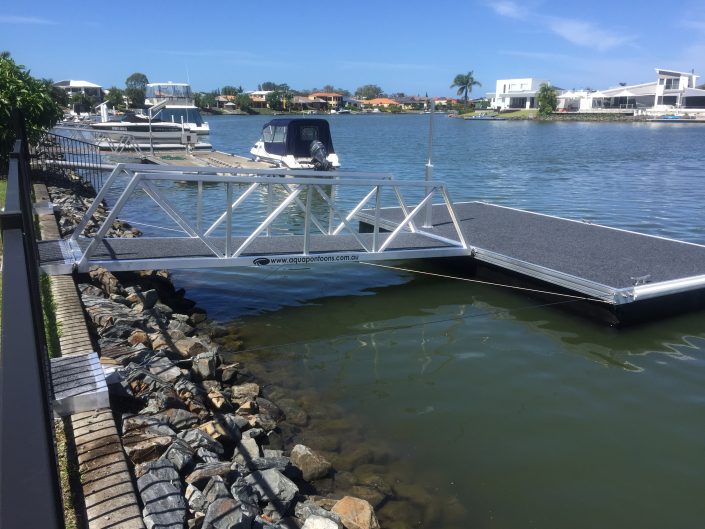

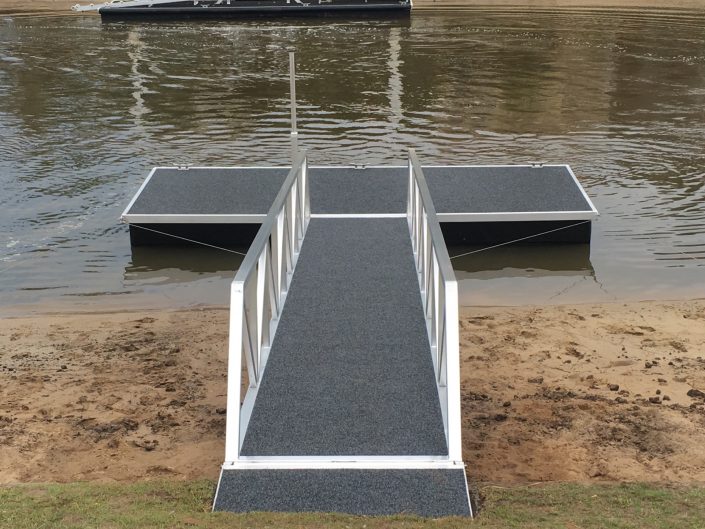

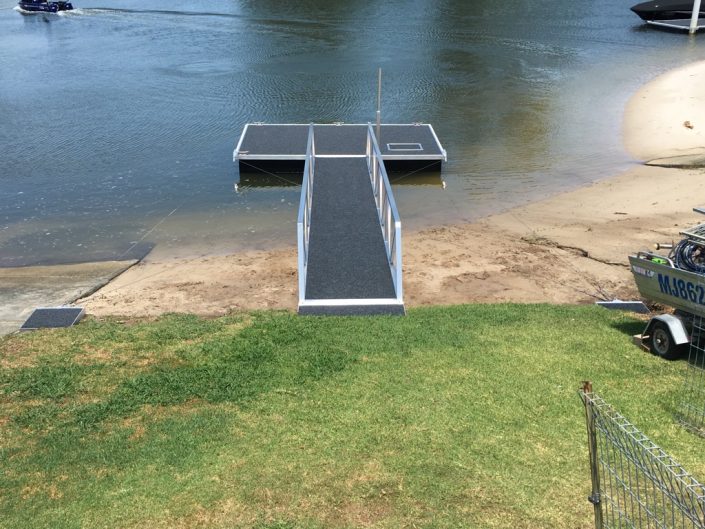

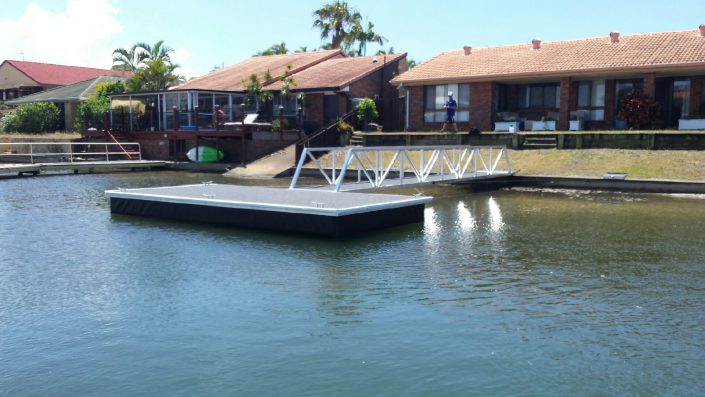

The gangway or walkway as it’s sometimes known, is hard fixed to a concrete mooring block on land, which provides access to the pontoon as well as bracing the pontoon, this in-turn stops any back and forth movement. They are made from aluminium and can generally be built in one piece up to about 18m long.
The Cable braces

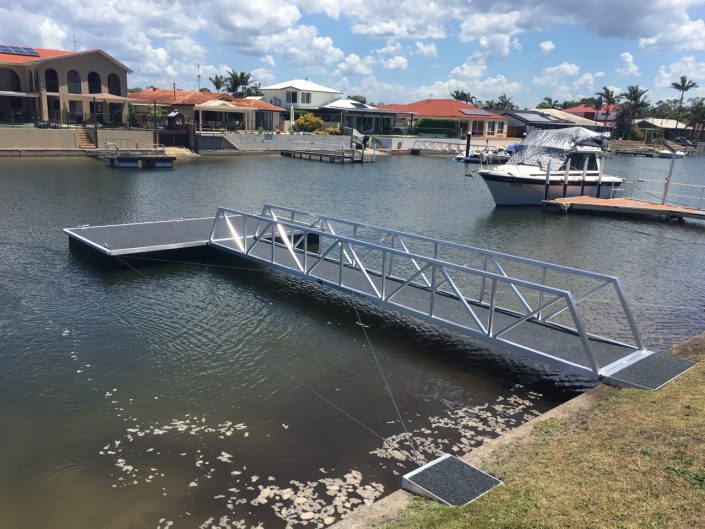

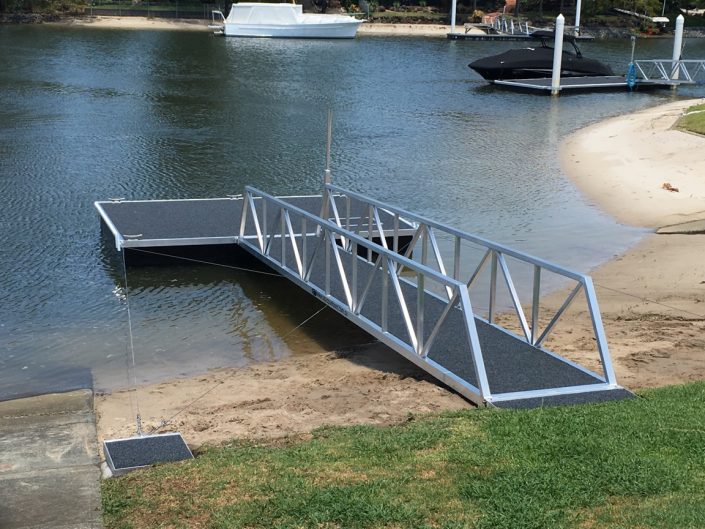

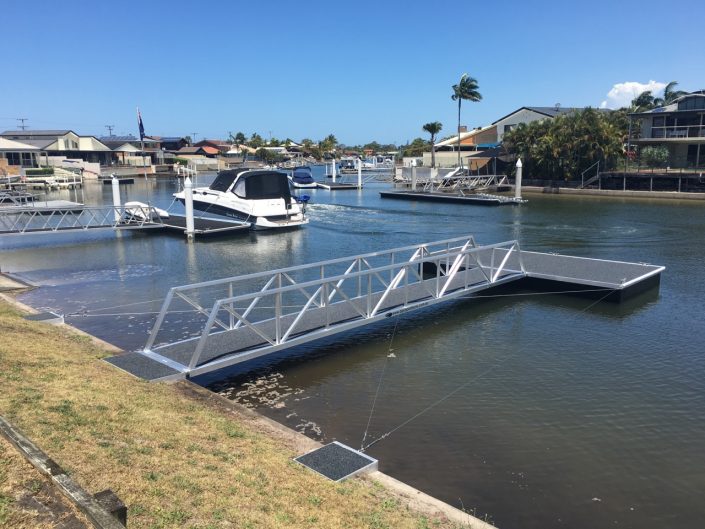

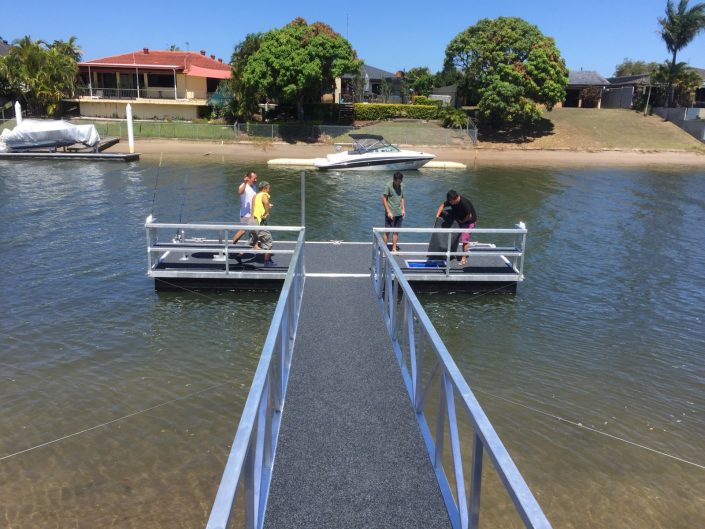

The cable braces (Stainless Steel Cable) on the pontoon run in a X shape, extending from the rear two corners of the pontoon. The right hand side cable will attach to a concrete mooring block on the left hand side of the property and the left hand side will connect to the right mooring block on the land, forming the X shape.
Cable Pontoon Features
Custom made concrete deck
Average 125mm thick concrete deck
Durable and environmentally friendly floatation system
Independent engineer guarantee
Suitable for quiet canals, dams and lakes as this is an affordable starting point to your boating experience
CAD drawings provided prior to council submission for approval by client
Polystyrene void wrapped in HDPE liner
This model comes with your choice of marine carpet colour
